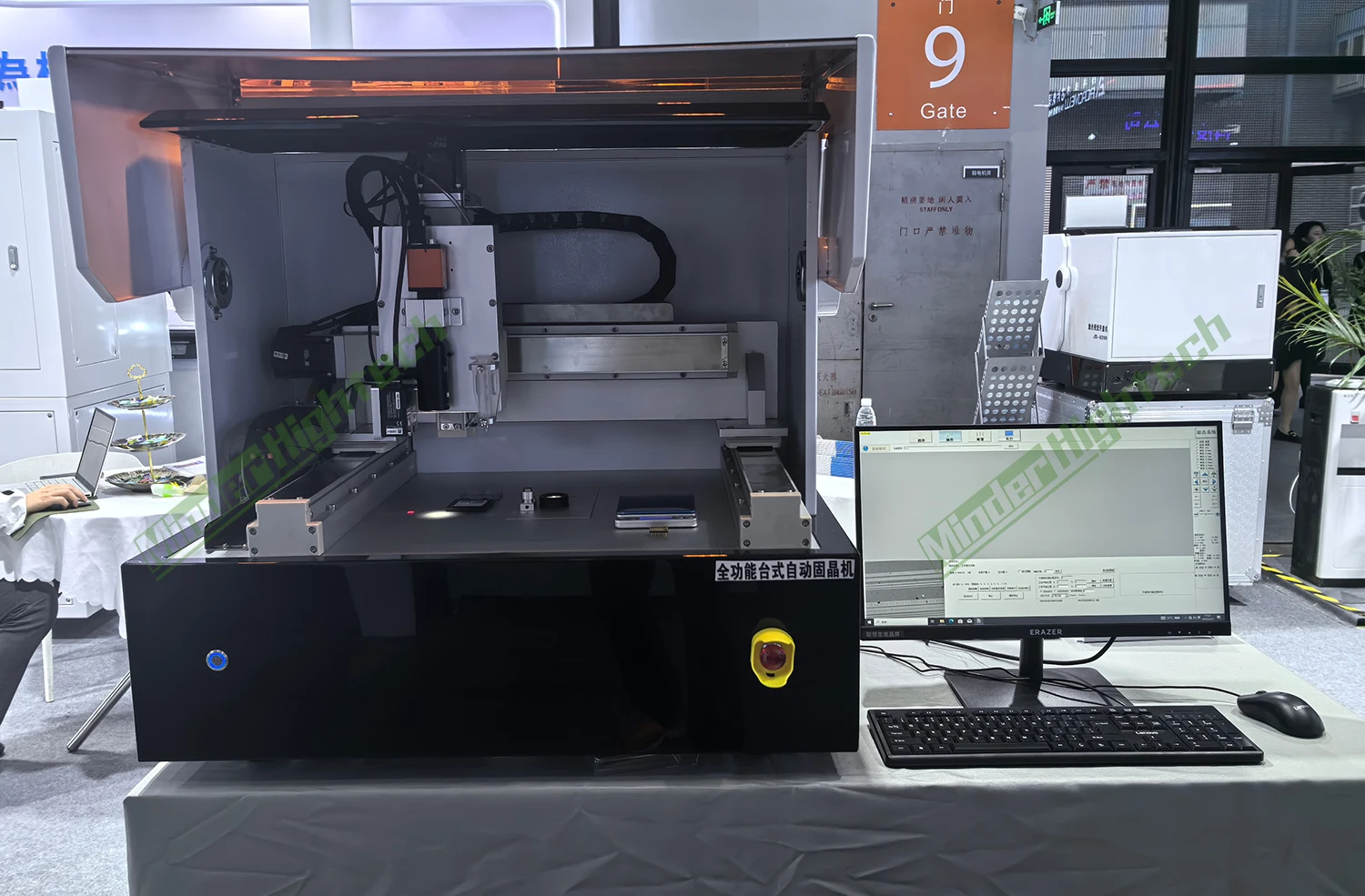

Full-Function Desktop Automatic Die Bonding Machine

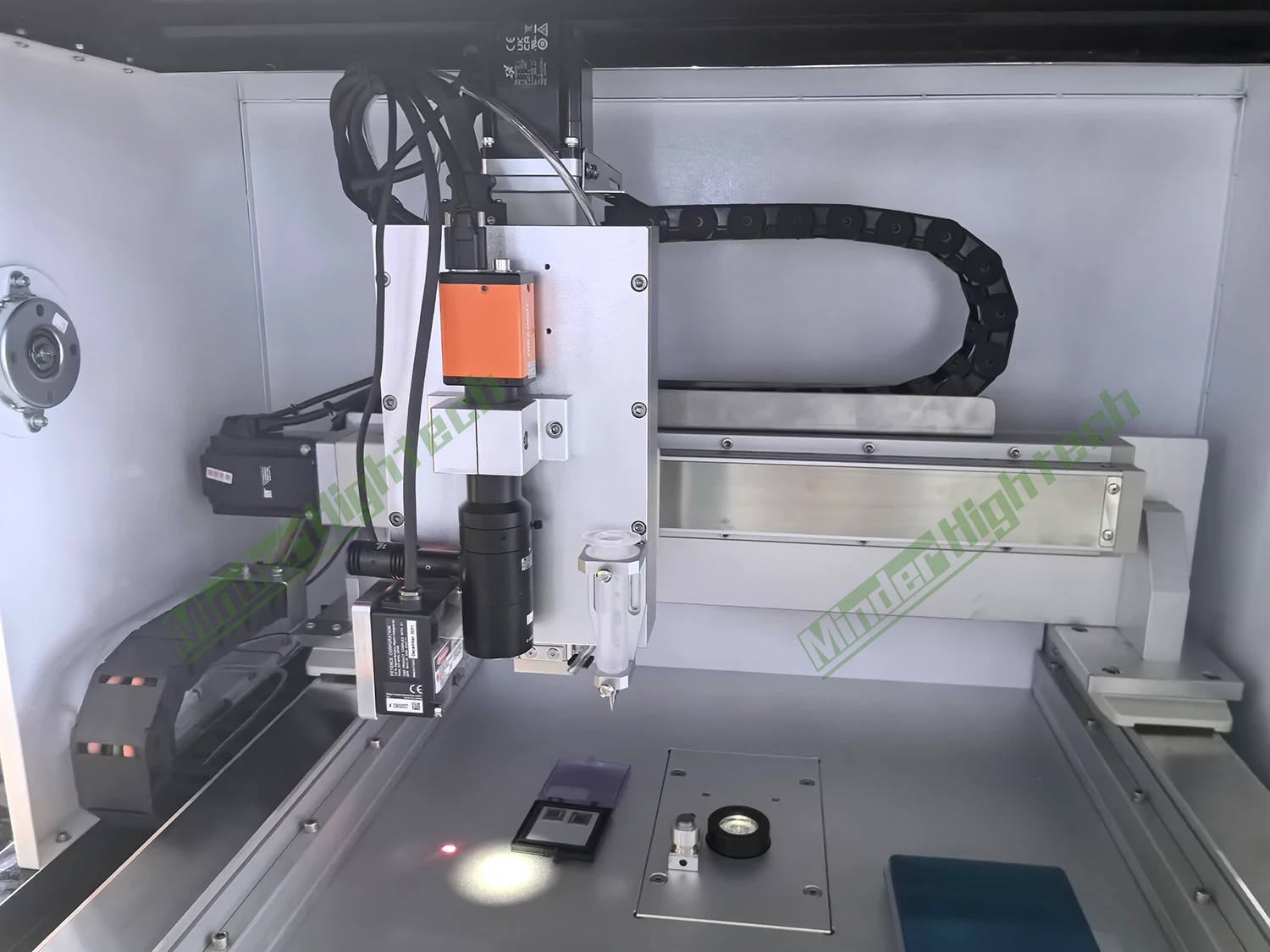

The Full-Function Desktop Automatic Die Bonding and Placement System is a comprehensive laser vision-based micro-assembly solution for high-precision die bonding. It effectively addresses user demands for compact footprint and high-precision processes. With a modular design, flexible configuration, and easy operation, the core module integrates a high-precision force-controlled mounting system and a dispensing fixture system. The system uses a micron-level gantry structure with single and dual drives, allowing easy integration with other modules for various configurations.
This system is widely used in various fields, including electronic devices (Micro LED, mini LED display chips, next-generation mobile devices with 03015 and 008004 components, large medical equipment (core imaging module assembly), optical devices (laser LD Palladium bar assembly, VCSEL, PD, LENS, etc.), and semiconductors (MEMS devices, RF devices, microwave components, and hybrid circuits).

Feature

* Desktop High-Precision Multi-Function Placement and Dispensing Platform
* AI Flatness Calibration System on the placement and dispensing platform, greatly reducing issues such as voids in die bonding.

* Precision Force-Controlled Soft Landing System: Ensures minimal contact force, preventing damage to the chip or leaving marks on it, perfectly solving defects caused by traditional pneumatic control systems and improving throughput.
* Supplementary Modules: Features automatic needle adjustment (fully automated calibration) and automatic needle tip change (supports 2-3 types of products), with auto calibration completed in less than 3 minutes.
* High-Precision Bonding for Small-Batch Production and Experiments: Meets the needs of both high-precision experimental bonding and small-batch production.

Application

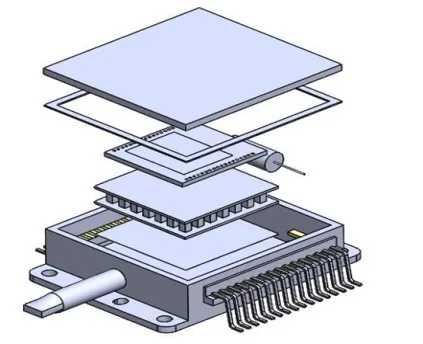

Uncooled Infrared Detector

uncooled infrared detector

Flip chip

Specification

Project	Content	Specification
Platform System	X-Axis Stroke	300mm
		Y-Axis Stroke	300mm
		Z-Axis Stroke	50mm
		T-Axis Stroke	360°
		Mounting Device Size	0.15-25mm
		Tooling Range	180*180mm
		XY Drive Type	Servo
		Maximum XY Running Speed	XYZ = 50mm/s
		Limit Function	Electronic soft limit + physical limit
		Laser Height Measurement Precision	3μm
		Needle Calibration Module Accuracy	3μm
		Platform Structure	Dual Y optical platform
Placement System	Overall Placement Accuracy	±10μm
		Adhesive Force Control	10g-80g
		Placement Orientation	Different heights, different angles
		Suction Nozzles	Bakelite suction nozzle / rubber suction nozzle
		Placement Pressure	0.01N-0.1N (10g-100g)
		Production Efficiency	Not less than 180 components/hour (for 0.5mm x 0.5mm chip size)
Dispensing System	Minimum Dispense Dot Diameter	0.2mm (using 0.1mm aperture needle)
		Dispensing Mode	Pressure-time mode (standard machine)
		High-Precision Dispensing Pump and Control Valve	Automatically adjustable positive/negative pressure based on the path feedback
		Dispensing Air Pressure Range	0.01-0.5MPa
		Support for Dot Dispensing Function	Parameters can be set freely (including dispensing height, pre-dispense time, dispensing time, pre-retract time, dispensing air pressure, etc.)
		Support for Scraping Function	Parameters can be set freely (including dispensing height, pre-dispense time, scraping speed, pre-retract time, scraping air pressure, etc.)
		Dispensing Height Compatibility	Capable of dispensing at different heights, with the adhesive shape adjustable to any angle
		Customizable Scraping	Adhesive library can be directly accessed and customized

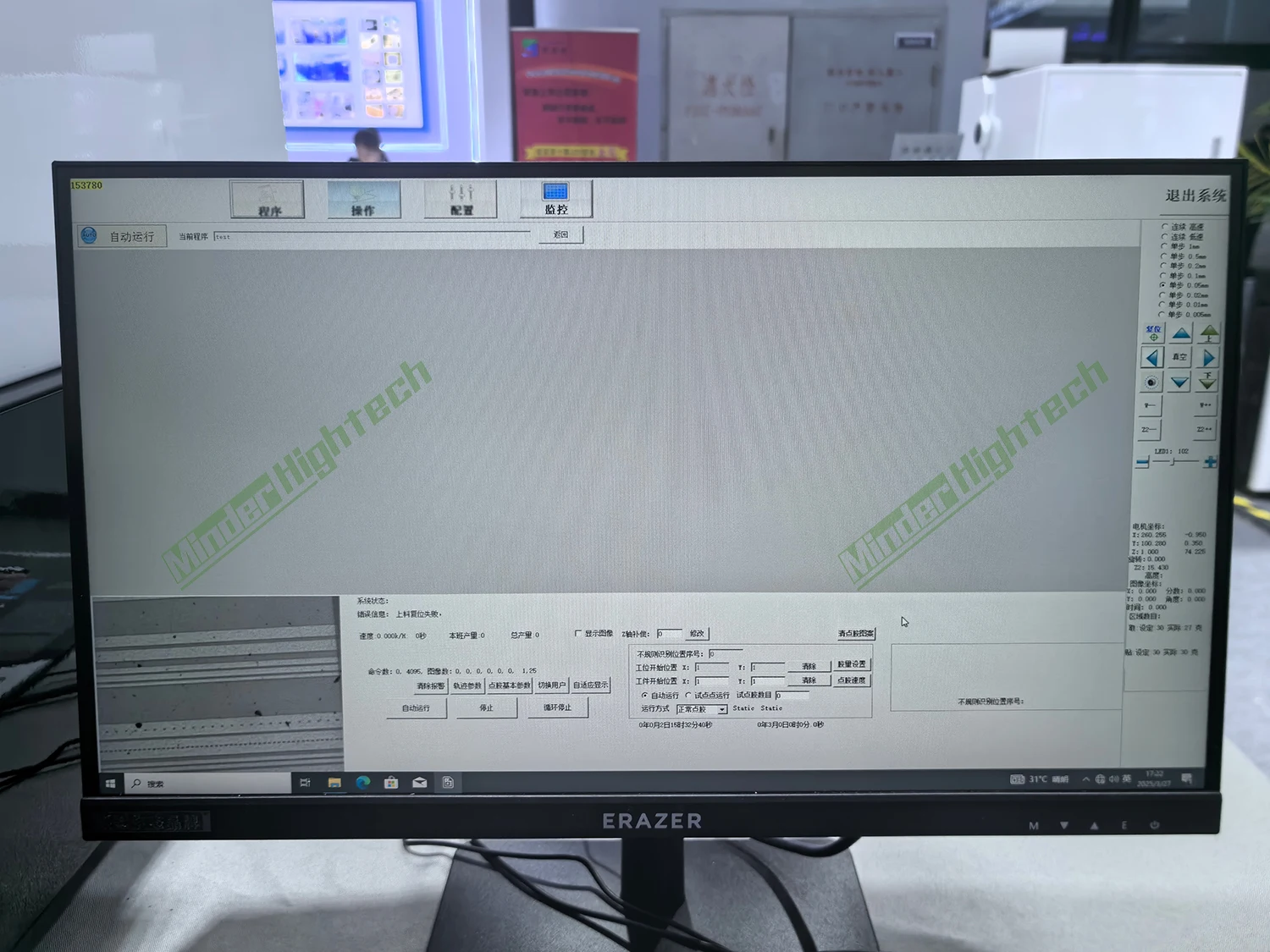

Vision System	XY Repetition Positioning Accuracy	5μm
		Z Repetition Positioning Accuracy	5μm
		Upper Vision System Resolution	3μm
		Lower Vision System Resolution	3μm
		Needle Contact Sensor	5μm
Product Applicability	Device Types	Wafer, MEMS, Infrared Detectors, CCD/CMOS, Flip Chip
Product Applicability		Materials	Epoxy resin, silver paste, thermal conductive adhesives, etc.
External Dimensions	Weight	Approx. 120KG
External Dimensions		Dimensions	800mm × 700mm × 650mm (approx.)
Environmental Requirements	Input Power	220AC ± 5%, 50Hz, 10A
		Compressed Air (Nitrogen) Supply	0.2MPa ~ 0.8MPa
		Temperature Environment	25°C ± 5°C
		Humidity Environment	30% RH ~ 60% RH
