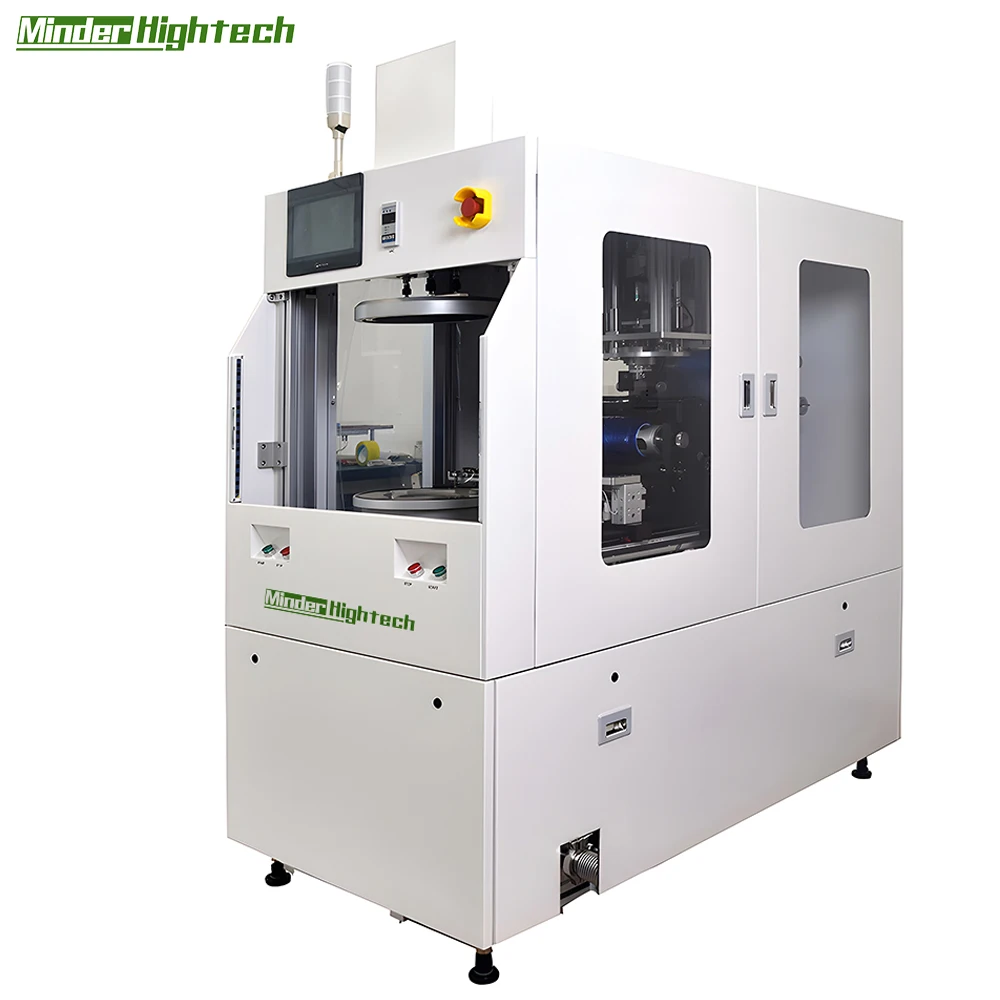

MDXT-VWM8 Vacuum Wafer Mounter

Get a Free Quote
Product Description

MDXT-VWM8 Vacuum Wafer Mounter

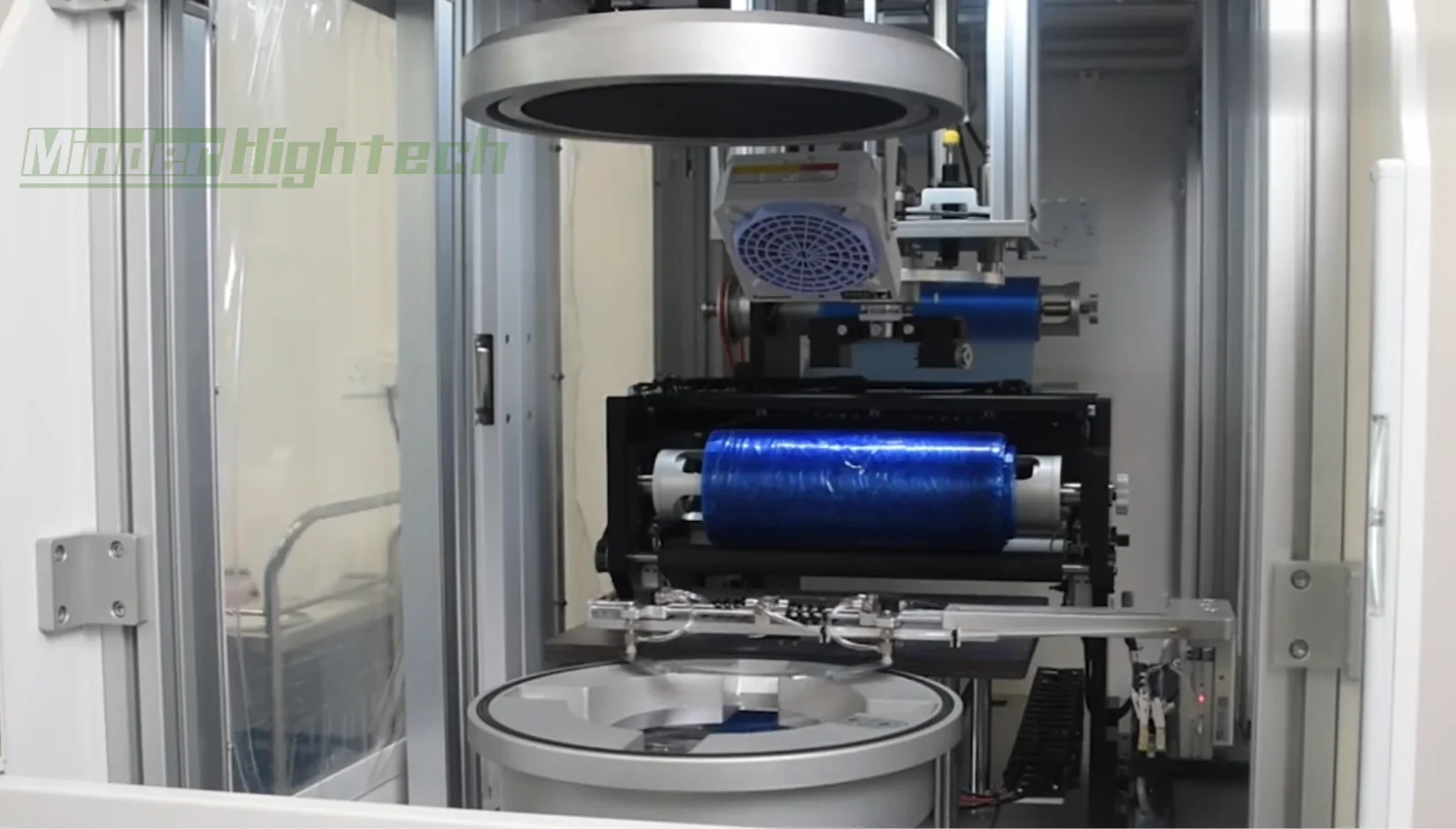

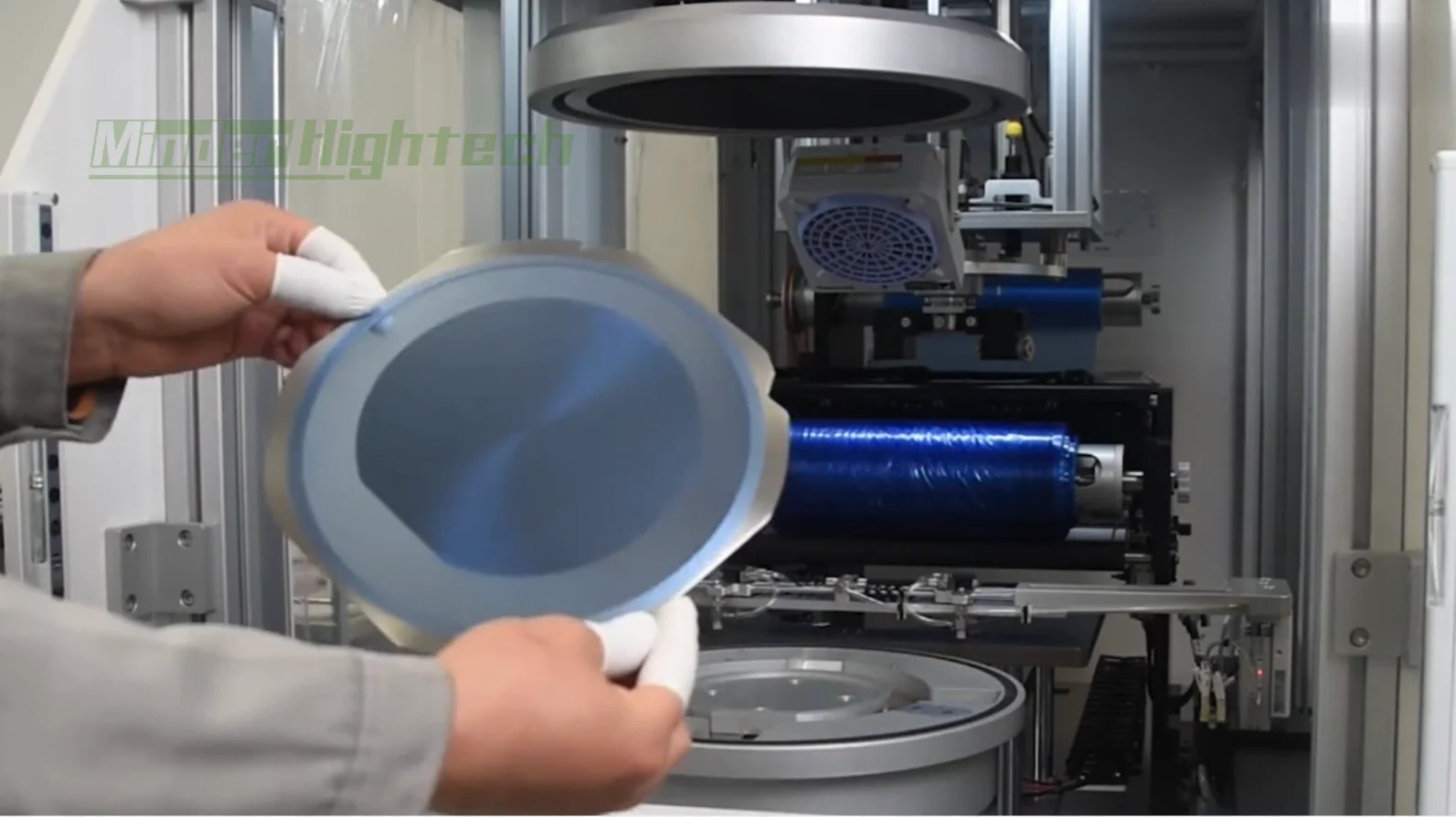

1. Vacuum mounting without rollers
2. Automatic film feeding
3. Automatic vacuum mounting
4. Automatic cutting, waste film collection, and isolation paper collection
5. Equipped with light curtain protection function
6. Equipped with emergency stop button
7. Manual loading and unloading is only required

Equipment performance

1. Wafer yield: ≥99.9%
2. Film quality: no bubbles (excluding dust particles)
3. Hourly production capacity: ≥40 wafers
4. MTBF: >500 hours
5. MTTR: <1 hour
6. Downtime: <3%
7. Product replacement time: ≤10 minutes
Specification
Wafer size
4”~ 8” wafer
Wafer thickness
100~750 microns
Wafer type
Si, SiC, GaN, or other materials
Film type
Blue film, UV film
Width: 230 ~ 300 mm
Length: 100 m
Thickness: 0.05 ~ 0.2 mm
Wafer carrier ring
6”、8”DISCO
Loading and unloading method
Manual wafer/carrier ring placement and removal
Film positioning accuracy
±0.5mm
Standard 6” and 8” wafer plates for 6” and 8” wafers
Vacuum pump
Minder-Hightech
Antistatic control
Deionization fan
Control unit
Based on PLC control, with 10” touch screen
Safety protection
Configured with light curtain protection and emergency stop button
Power supply voltage
Single-phase AC 220V, 16A
Compressed air
0.45~0.6MPa, flow rate 70L/min
Machine housing
White plastic-sprayed metal housing
Volume
850mm (width)*1750mm (depth)*1970mm (height)
Net weight
480kg
Packing & Delivery
Company Profile
Since 2014， One-stop Professional Solution for Semiconductor and Electronic product industry equipments.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the
equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
