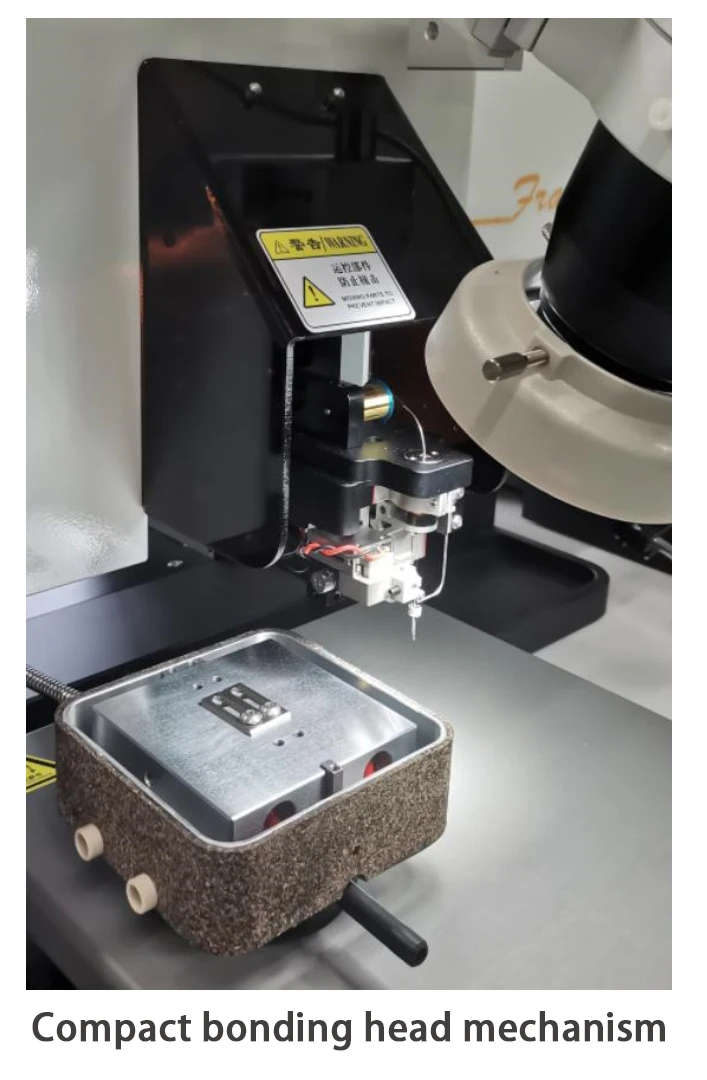

MDZW-BW1880
Manual-Semi Ball&Wedge 2 in 1 Bonder

1. Fixed arc height, fixed line length, automatic arc starting, improve line arc consistency

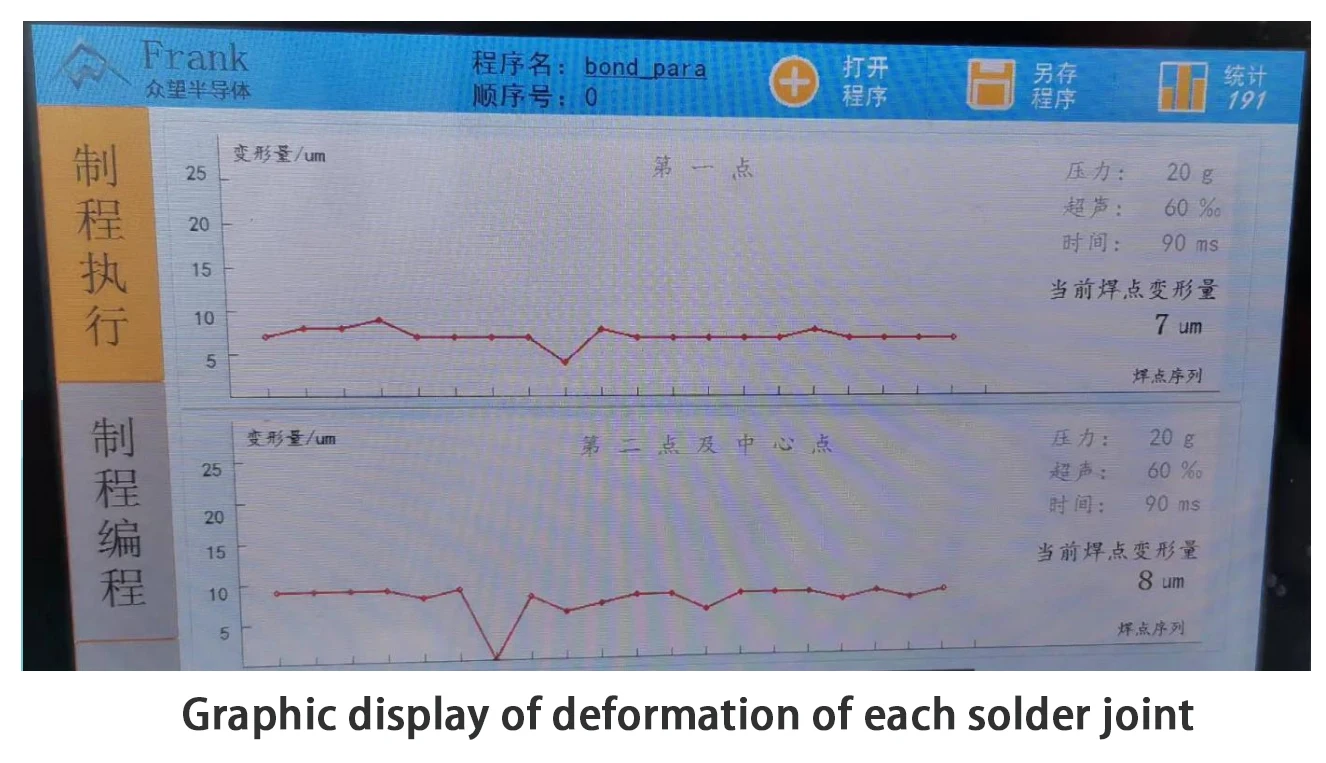

2. Real-time monitoring of solder joint deformation, effectively guaranteeing the quality of bonding solder joints
3. Manual/semi-automatic function online switching, flexible and convenient, better product compatibility
4. Ball planting wireless tail/BSOB/BBOS/adding ball position/pad ball position can be set online, automatic point alignment

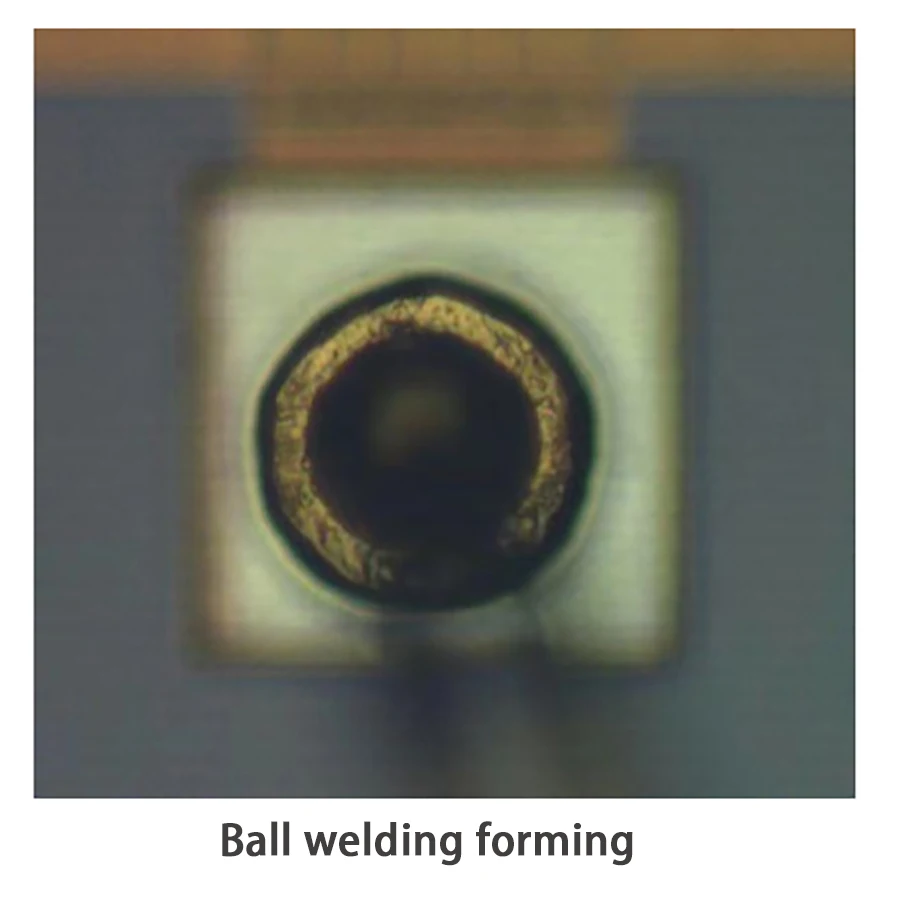

5. Ball welding and wedge welding are integrated, convenient and fast switching

Product advantages

1. Manual and automatic, with the flexibility of manual machine and the consistency of semi-automatic machine
2. Ball and wedge integrated, easy to switch
3. Based on full closed-loop grating feedback, Z-axis motion accuracy is 1um, more accurate and stable
4. Based on DSP digital phase-locked technology, the transducer vibrates more evenly and stably
5. Real-time monitoring of solder joint deformation, quality assurance, high consistency

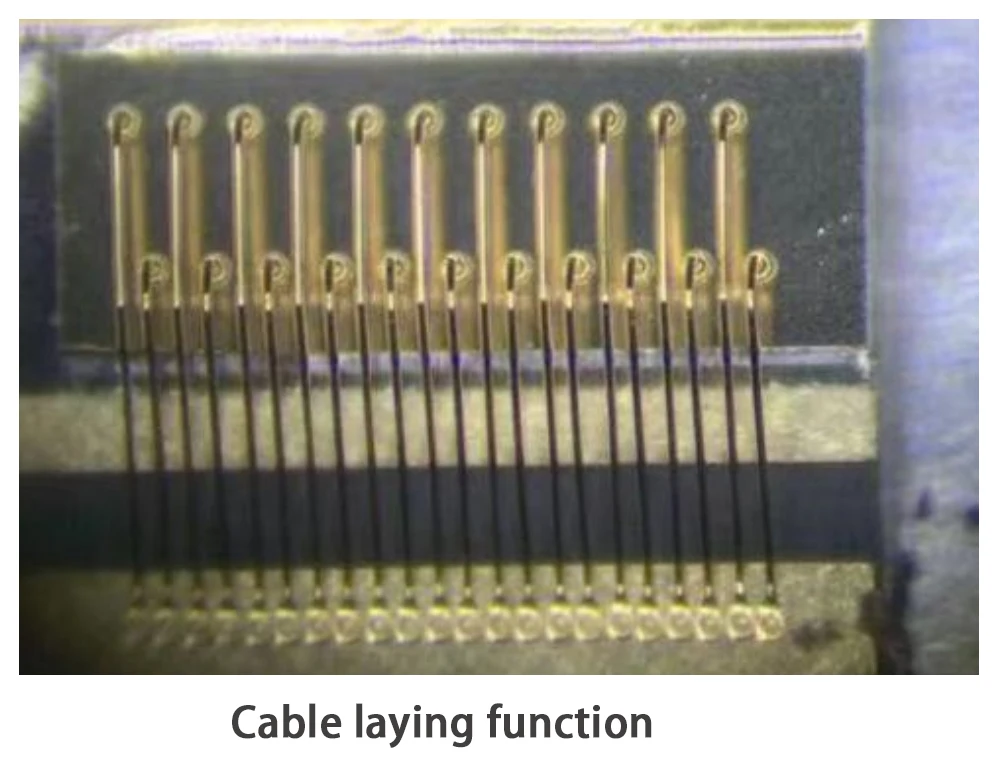

6. Wire arrangement function, manually complete the first wire, automatically complete the rest of the wire bonding, high
efficiency

Specification

XYZ axis	Travel 15mm15mm18mm
Wire diameter	Gold wire 18-75um；Platinum wire 18-25um；Aluminum wire 18-80mm；Gold belt 2512.7μm-30025.4μm
Cavity depth	compatible with 16/19mm ball welding splitter 16/19/25/32mm wedge welding splitter；Cavity depth up to 21mm
Bonding pressure	5-150g, accuracy 0.1g, online programmable
Ultrasonic power	0-5W, 1000 times subdivision
Device size	compatible with more than 200mm
Lifting platform size	250mm250mm18mm
Spool size	compatible with both 1/2-inch and 2-inch spools
Overall dimensions	750mm W580mm D500mm H
Weight	80KG
Power supply	AC220V±10%@50HZ, 10A, less than 500W
Compressed air	>0.2MPa, purified air source
