Parallel Hermetic Seam Sealing Welder for Ceramic

Equipment Overview

The semi-automatic parallel seam welding machine MD-100 produced by guangzhou MinderHightech is a shell and cap sealing equipment that integrates a parallel sealing machine and a glove box. Through vacuum baking and operation of the capping process in the glove box, the moisture and oxygen content in the shell can be reduced to meet the needs of high performance and high reliability.

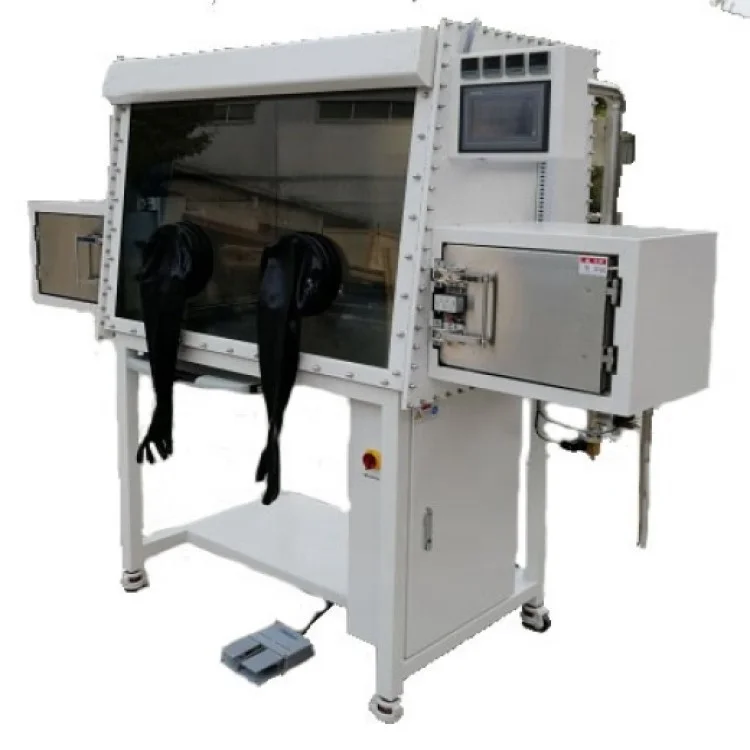

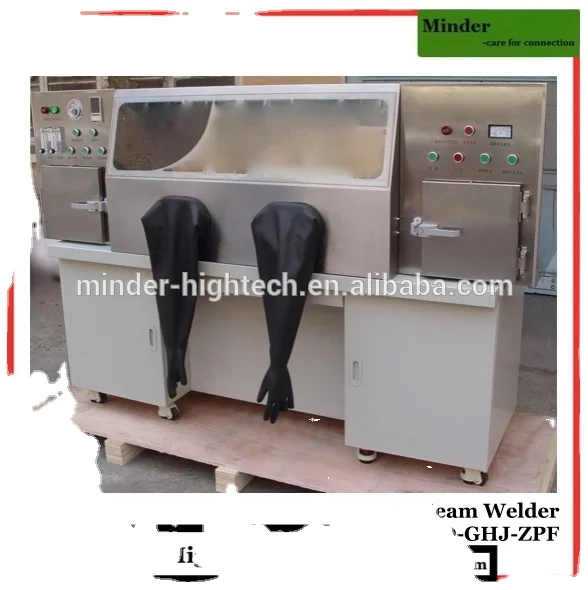

This equipment consists of parallel sealing machine and glove box. The sealing machine completes the capping process of the tube shell, and the glove box provides a process environment with low oxygen and low water vapor content for the capping process. The parallel seam welding machine is placed in the operation box of the glove box. After the material is baked in the vacuum oven, it is transferred from the inner door of the operation box to the operation box. After the capping process is completed, it is taken out through the exchange box.

1, Features

1)Multiple welding modes: round welding, rectangular welding, regular polygon welding and array welding.

2)The advanced sealing and welding energy control scheme significantly improves the welding quality of the device edge and corner.

3)Accurate control of electrode wheel pressure

4)Very slow welding (for ceramic shell)

5)Cover plate pressing device.

6)Easy management of power parameters

7)Electrode wheel protection function

8)PKG size range:(3×3)mm~(100×100)mm

9)PKG PKG shape:Square, round, regular polygon

2, Welding parameters:

1.     Maximum welding power:6KW 220V 50/60Hz

2.     Welding speed:0.1mm/s~30mm/s

3.     Welding pressure:0~1500g

3,Axis of motion

1,Positioning accuracy of the motion axis:0.02mm

2,Rotation angle range of shell:360°

4,Welding tightness:

Meets the airtightness requirements of GJB548B-2005 "Microelectronics Test Methods and Procedures"

Ø Glove box technical indicators:

1,Operating cabinet

1.1 Box size:900mm( high)x 750mm(deep)x 1200mm(long)

1.2 gloves: 8-inch glove mouth, 0.4mm thick butyl gloves, hard aluminum alloy glove mouth (after anti-corrosion treatment), caliber 220mm. Number of gloves: 2

1.3 Can maintain a certain positive and negative pressure during use(-12mbar-12mbar)

1.4 Box with automatic air supplement and flushing function, PLC intelligent control pressure

1.5 Integrated humidity detection system (dew point test)

1.6 Integrated oxygen content detection system (oxygen sensor detection)

1.7 Automatic cleaning function: water and oxygen parameters can be set, and the cleaning function is automatically turned on according to the setting requirements

2,Oven and transition chamber

2.2  Oven (inner) size:300mm(high)×300mm(width)×350mm(long).

2.3  Tray: Three-layer work partition and four-layer temperature zone heating

2.4  The PLC can realize the intelligent control of the periodic inflation, pumping and flushing of the heating system, and the supplementary gas comes from the inside of the box

2.5 Heating method: heating plate heating, 4 layers

2.6 Temperature control range: 150℃

2.7 Temperature control accuracy: +/-2℃

2.8  Uniformity of temperature distribution: the temperature distribution difference is controlled at + / 5 ℃

This Hermetic sealing seam welder is for welding packages from Crystal, SAW,Optical device,Sensor,MEMS,Lineup. available for R&D and mass production.

We offer a full range of resistance welding based system including projection and rotary welders, hermetic seam sealing system,lid placement and tacking system.

How is our selection for hermetic seam sealing?

1, for small package and tray processing:

a) semi-automatic combination:



Feature:

1,Tray or magazine feeding.

2,Dual welding head system.

3,Easily operate and shift design.

4,Special high frequency power supply.

5,Fault self check function.

Main Specification:

1,package size:2*2—30*30mm.

2,Speed:UPH>1800(based 5032).

3,Leak rate:<5>

4,Dew point:-40degree (optional -65degree).

5,Power Input: 380V for power supply,220V for equipment.

6,Power:4KVA.

7,N2 >0.2Mpa.

8,Dimension:2300*850*1650mm.

9,Weight:500kg.

Full range of seam welder:

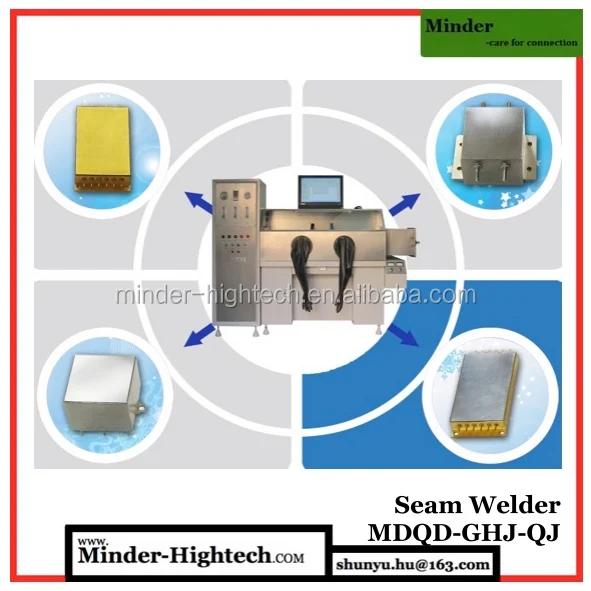

Click here or below photo to see all the seam welder we offer.

Seam Welder Type Summary:

Part of sample show:

The Parallel Hermetic Seam Sealing Welder for Ceramic through Minder-Hightech is simply a state-of item-the-art particularly for welding and sealing ceramic products.
It is the ideal service business operating in the porcelains market that require smooth and hermetic secures on ceramic items.

This Parallel Hermetic Seam Sealing Welder for Ceramic utilizes progressed innovation towards ensure a lot also of while welding products that are ceramic. Its own geared up with a parallel style guarantees a understood degree flow of pressure over the welding location. This include implies that the ceramic items bonded are kept safely in position, which reduces the possibility of fractures or even spaces since the items are currently bonded.

The Minder-Hightech Parallel Hermetic Seam Sealing Welder for Ceramic is uncomplicated towards utilize, that makes it a fantastic item companies with limited technological proficiency. It is made with a user-friendly command that allows individuals towards control setups like weld temperature level and stress towards enable for their specific demands. When established, the device immediately manages the welding treatment, requiring very little being treatment individual.

This Parallel Hermetic Seam Sealing Welder for Ceramic is certainly not just a simple job towards run; it is likewise extremely effective. Its own advanced style reduces power reduction with the whole welding treatment, considerably decreasing energy usage. This specific element equates towards decreased power fees for individuals, which equates towards monetary cost financial savings for business into the long term.

The Minder-Hightech Parallel Hermetic Seam Sealing Welder for Ceramic can likewise be extremely resilient. It is produced utilizing top quality products and that can be developed towards endure the extensive requirements of commercial use. Furthermore, this welding machine is uncomplicated to always keep, requiring very little upkeep maintain it in leading functioning problem.

The significance of a smooth and hermetic welding porcelains cannot be overemphasized. The Minder-Hightech Parallel Hermetic Seam Sealing Welder for Ceramic guarantees that ceramic items are bonded with identify precision, offering an unrivaled high top premium degree that fulfills the market demands that can be biggest. Business that place cash into this welding machine might be positive that their ceramic products are linked with biggest high-top premium, which equates towards enhanced client replay company and treatment.

The Minder-Hightech Parallel Hermetic Seam Sealing Welder for Ceramic is a company’s product that are essential towards the porcelains market. Its own advanced style, simpleness of utilization, efficiency, resilience, and capability towards provide excellent high top premium, enable it towards be an exceptional specific product towards typically satisfy up with the requirements of most likely the most discerning clients.
