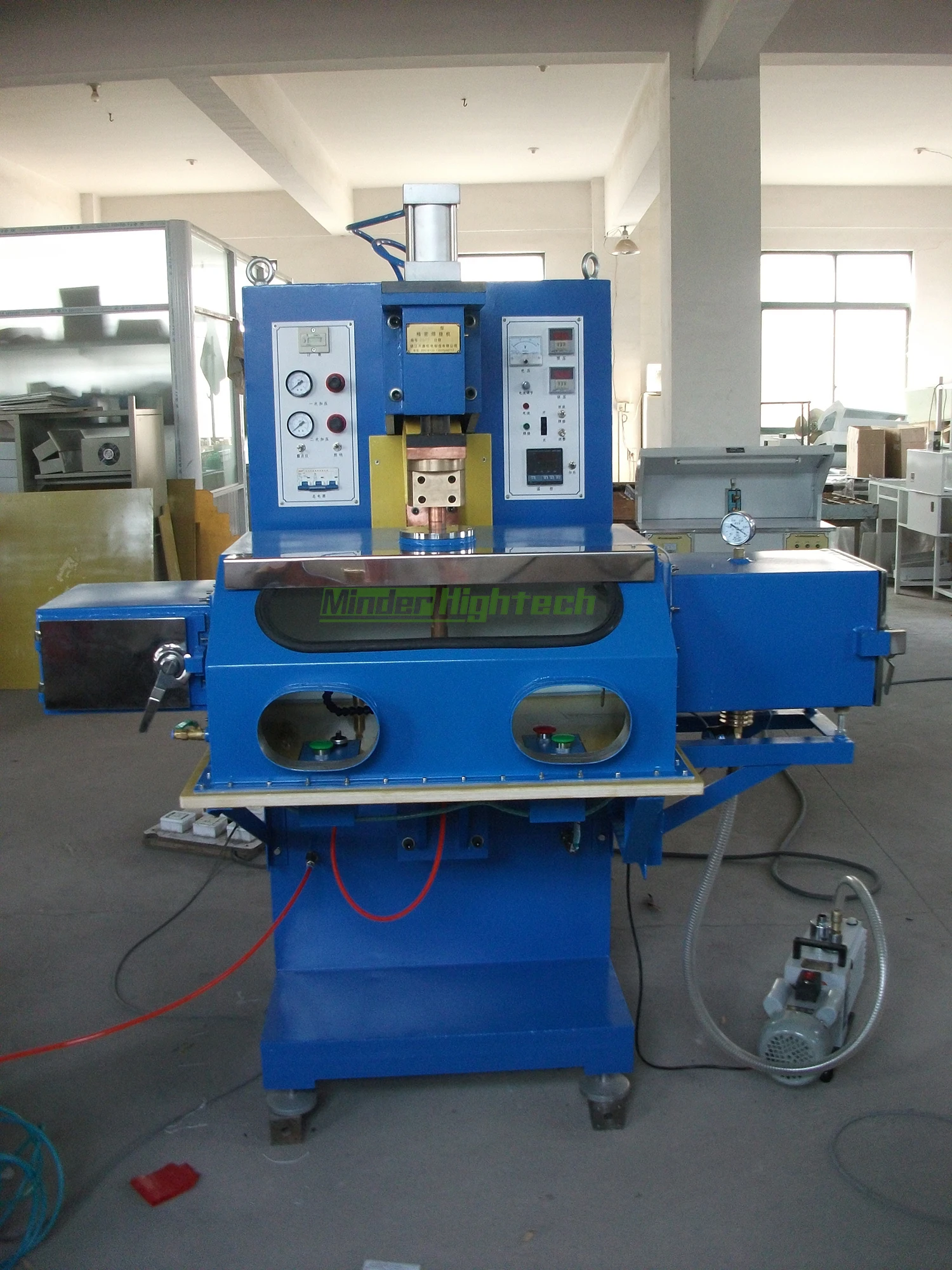

Configuration: Input case： with vacuum pumping,N2 charge, oven heating function. Operation case: with N2,1kg air pressure; contain valve to manually control the air discharge. Output case: easy to get out the material. Main seal welder: capacitive discharge welder.
Application

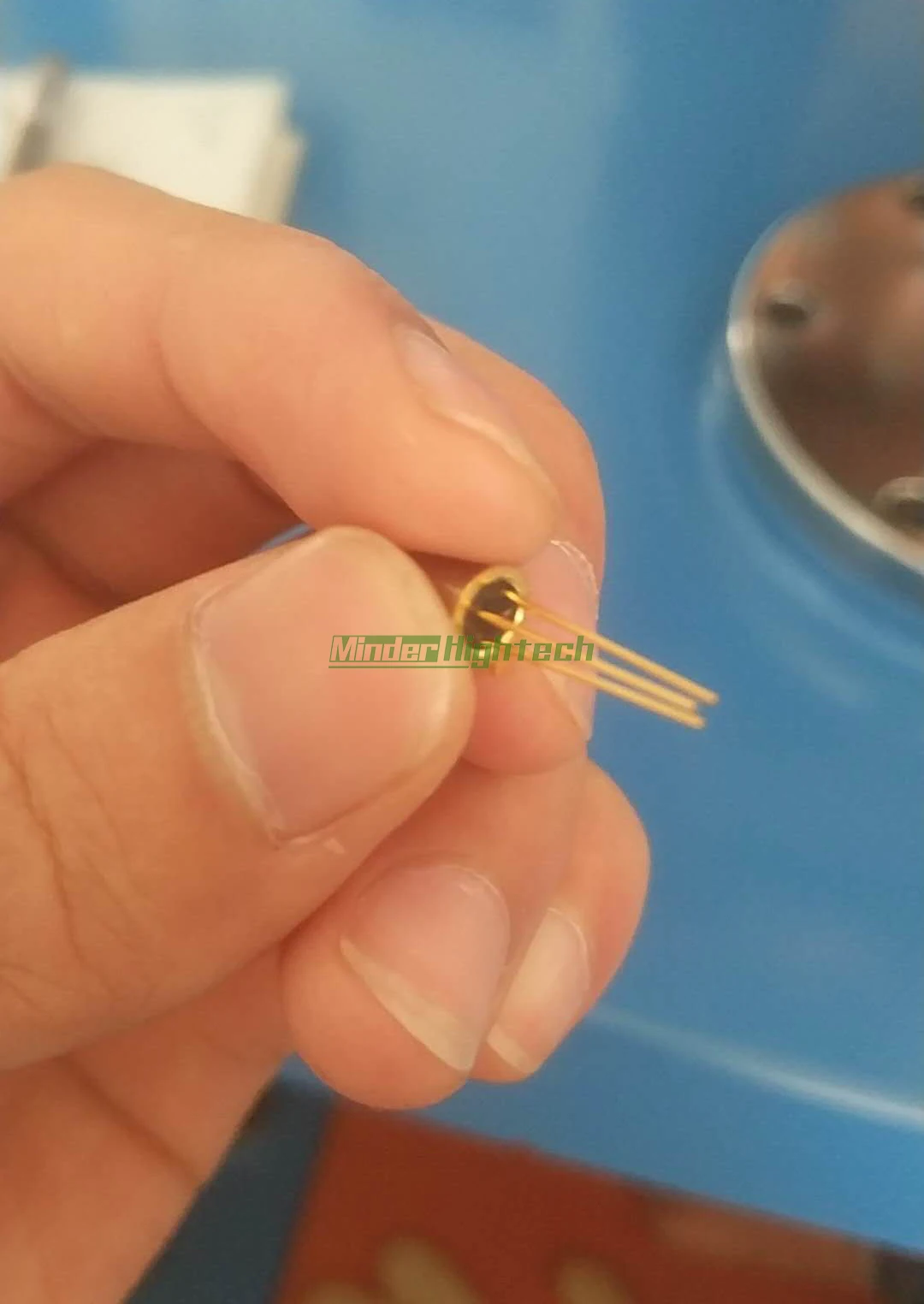

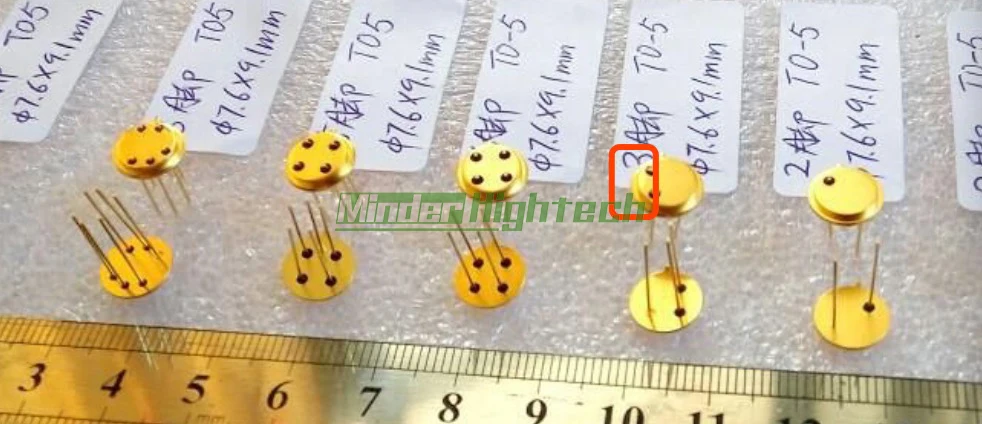

Suit for TO-46,TO-56,mini(diameter:1.96mm)optical component seal welding
Specification
1，Max storage energy: 3500J.Transformer capacity:35KVA. 2, Capacitance capacity:(330uF*80PCS)=16500uF+-5%. 3, Optional dew point meter to fulfill military product. 4, Max pressure:4000N. Stroke:50mm. 5, Charge voltage:80-380V adjustable. 6, Using dual start button to start welding, ensure security. 7, Requirement: 3 phase, 380V 50Hz. air 0.6 Mpa. Input power:4kVA. 8, The vacuum oven can auto control the temperature and manual control the N2 and pump Vacuum. 9, Heating temperature:150degree+-5%. 10, Dimension:1700*2000*1800. Weight:700kg.
Packing & Delivery
Company Profile
Since 2014，One-stop Professional Solution for Semiconductor Front-end and IC TO Package Equipments Line
FAQ
1. About Price: All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2. About Sample: We can provide sample production services for you, but you may provide some fees.
3. About Payment： After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.
4. About Delivery: After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. Installation and Debugging: After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.
6. About Warranty: Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
